How to display a heatmap on the tablet.

Issue

How to display a heatmap on the tablet.

Answer

The display procedure is as follows.

• Launch Machine Guidance from the menu screen.

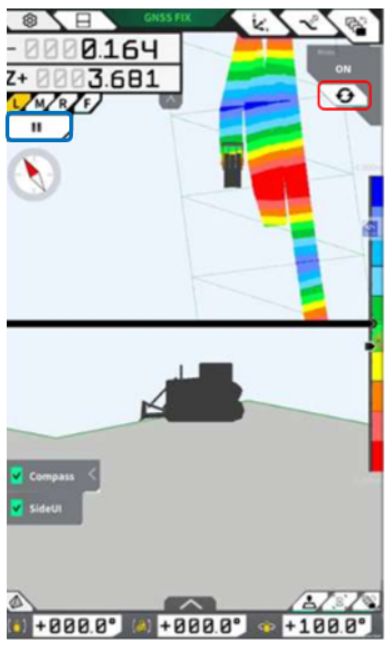

• Select the"" mark in the upper right corner and turn it ON to display the heat map.

*Supplementation　

When the construction history data is acquired (icon in the upper left corner is ), the data is recorded regardless of whether the heat map is displayed ON or OFF.
